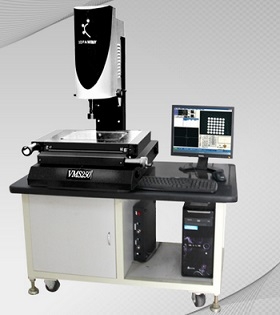

Máy đo 2D

Model

VMS250

VMS300

Work platform Size(mm)

420X310

470X360

Measuring Stroke(mm)

250*150*200

300*200*200

Machine Size(mm)

1200*700*1610

1200*700*1610

Weight(kg)

body：227
work table：80

body：237
work table：80

Loading(kg)

30

Base and Column Material

precision granite

Operation

manual

Transmission

independently developed precise toothless screw drive

Lens

3DFAMILY-S type continuous zoom lens

Magnification

Optical magnification：0.7X-4.5X
image magnification：39X-225X
(1440*900 display resolution)

CCD

430,000 pixels 3DFAMILY-L color CCD

Light Source

surface lamp: LED light, white
contour light: LED nearly parallel light, white
three color options (white, red, green)
control modes: manual(programmable optional)

Optical Ruler Resolution(um)

1

Precision(X/Y)(um)

（3+L/200）

Repeatability(X/Y)(um)

2

Software

OVM-Lite

Warranty

One year

Applicable Environment

Power：110V-220V±10% 50/60HZ,
temperature：20±5℃，
Humidity：45%-75%
